Still an ongoing project to play Atari Battlezone via a laser projector (for no other reason than I like a challenge :)).
I stumbled for a long time over pushing data fast enough to a microcontroller, with a USB serial port proving too slow and a USB isosynchronous device being very complicated to program. Now I am using an mbed microcontroller board (with a decent amount of RAM and fast clock) to receive data and drive the DACs, and with the ethernet support of the mbed, I am able to send data over a TCP socket, which seems to be plenty fast enough.
The mbed's speed and RAM also allowed me to do a lot of the number crunching on the microcontroller (in particular the plotting of lines) so all I need is to push the lists of vertices to the mbed and it will generate "in between" points along a line (required so that the laser galvos can be moved a bit more incrementally - and with less probems of intertia -than just throwing them at the raw vertices. Also means I can keep plotting a frame while the next one arrives.
The "hard bit" - the actual Battlezone game - is actually easy, since I am using the wonderful open-source MAME emulator and was simply able to locate the vector display emulation code and hook my stuff into it. Luckily Battlezone does output vectors with decent continuity (i.e. where lines join up they tend to be sent consecutively, which saved me sorting list into some kind of optimised plot order). So basically my hooks in the MAME vector code just convert the floating point vector coordinates into 12 bit integer values (for my ADC) and flag "move" vs "draw" actions. Then the list can be dumped to the TCP socket at the end of the refresh cycle. At the moment I am only outputting every 10th frame to let the microcontroller breathe.
On the mbed side I am using a MCP4922 12-bit dual Digital to Analog Converter (DAC) with SPI serial interface, which can easily be driven from the mbed. The DACs drive a 20kpps Galvo set purchased from ebay (about £100 including PSU and drivers). I also have a 6N139 opto isolator driving the TTL blanking for the laser (a 50mW green DPSS module from Aixiz).
I am still working on the mbed code... at the moment I use a kind of double buffering with 2x16kb buffers, one of which can receive the frame buffer from TCP/IP socket while the mbed is plotting the other. Between plots the mbed checks if the receive frame is complete and switches the buffers if this is the case.
The frame rate I can plot is too slow, and I need to work out how to make it better. I need to force delays during plotting to allow the mechanical galvos to catch up with the driver signal. These are all <1ms but they add up and reduce the frame rate. Also the lines are "plotted" with "in-between" point calculation to try to keep galvo movement rate reasonable. I need to work out the best combination of delays and divisions to get the best plot with the best framerate. I am also thinking about recognising the text at the top of the display (status text and scanner) and missing them out of the plot (text kills the plot rate)
Still a work in progress, but fun!
Sunday, 19 December 2010
Saturday, 27 November 2010
Tesla coil diary - part 2
I've been playing on and off with the coil for the last couple of months, but the first test a few weeks ago was a little bit disappointing, only managing sparks of 6" or so and then only to ground (no air streamer breakout event with a breakout point on the top)
At first I thought the problem was positioning of the primary coil tap (i.e. change the number of active turns on the bottom coil) but I still could not get any better than 6" sparks to ground. Then I started to play with the spark gap and found that using a spacer to force a larger gap between the lengths of copper tube making up my static gap, the sparks improved a bit. That is until the spacers caught fire :)
So, I decided to try with a simple rotary spark gap and holy crap did it make a difference! Here it is...
I used 5mm acrylic sheet as a base material and a nominal 3000rpm shaded pole motor running at 240VAC. In theory 3000rpm is 50 revs per second. With the spark gap opening twice per rev (i.e. presenting at zero and 180 degrees) this should give 100 breaks a second I think... in theory this is perfect for discharging the capacitor bank just as it reaches maximum charge twice (positive and negative) on each mains AC 50Hz cycle.
Thats the theory, but its not a proper synchronous motor and the load of the spinning gaps looks likely slow it down a bit... if I get on to tuning things further I might try to work out its actual RPM. The motor is fitted to a base plate which can be rotated so the phase (i.e. when in mains cycle the breaks happen) can be changed, but I think this is really only going to be of value if the break rate really is 100Hz. I haven't played with moving the motor yet, something for another day.
Well... here are the results, without any serious attempt at tuning the primary tap.
Some other recent additions are a Terry Filter (safety spark gap and surge filter which protects the Neon Sign Transformer getting fried)
When I was packing it all up I was rather perturbed to receive small electric shocks every time I touched the secondary connections. At first I thought I had done something dumb like leave the mains connected or that the primary capacitors had remained charged somehow. However I got shocks handling the secondary even after I had completely removed it from the rest of the setup and I think the PVC pipe and/or the varnish layer were storing a static charge which leaked slowly over to the copper wire. The outside of the varnish certainly had a static charge like a TV screen right after the coil had been run. Interesting!
Sunday, 24 October 2010
Solenoid Drum Machine
Just a quick project to try out some new push solenoids...
Based on PIC16F688 and building on the MIDI input code used on my earlier POKEY project
include <system.h>
#include <memory.h>
#pragma DATA _CONFIG, _MCLRE_OFF & _WDT_OFF & _INTRC_OSC_NOCLKOUT
#pragma CLOCK_FREQ 8000000
typedef unsigned char byte;
// define the pins
//#define P_LED portc.0
// MIDI defs
#define MIDIMSG(b) ((b)>>4)
#define MIDICHAN(b) ((b)&0xf)
#define MIDIMSG_NOTEON 0x09
#define MIDIMSG_NOTEOFF 0x08
// MIDI message registers
byte runningStatus = 0;
int numParams = 0;
byte midiParams[2] = {0};
#define SZ_RXBUFFER 20
byte rxBuffer[SZ_RXBUFFER];
byte rxHead = 0;
byte rxTail = 0;
int tmr[4] = {0};
////////////////////////////////////////////////////////////
// INTERRUPT HANDLER CALLED WHEN CHARACTER RECEIVED AT
// SERIAL PORT
void interrupt( void )
{
// check if this is serial rx interrupt
if(pir1.5)
{
// get the byte
byte b = rcreg;
// calculate next buffer head
byte nextHead = (rxHead + 1);
if(nextHead >= SZ_RXBUFFER)
{
nextHead -= SZ_RXBUFFER;
}
// if buffer is not full
if(nextHead != rxTail)
{
// store the byte
rxBuffer[rxHead] = b;
rxHead = nextHead;
}
}
}
////////////////////////////////////////////////////////////
// INITIALISE SERIAL PORT FOR MIDI
void init_usart()
{
pir1.1 = 1; //TXIF
pir1.5 = 0; //RCIF
pie1.1 = 0; //TXIE no interrupts
pie1.5 = 1; //RCIE interrupt on receive
baudctl.4 = 0; // SCKP synchronous bit polarity
baudctl.3 = 1; // BRG16 enable 16 bit brg
baudctl.1 = 0; // WUE wake up enable off
baudctl.0 = 0; // ABDEN auto baud detect
txsta.6 = 0; // TX9 8 bit transmission
txsta.5 = 1; // TXEN transmit enable
txsta.4 = 0; // SYNC async mode
txsta.3 = 0; // SEDNB break character
txsta.2 = 0; // BRGH high baudrate
txsta.0 = 0; // TX9D bit 9
rcsta.7 = 1; // SPEN serial port enable
rcsta.6 = 0; // RX9 8 bit operation
rcsta.5 = 1; // SREN enable receiver
rcsta.4 = 1; // CREN continuous receive enable
spbrgh = 0; // brg high byte
spbrg = 15; // brg low byte (31250)
}
byte rxInc(byte *pbIndex)
{
// any data in the buffer?
if((*pbIndex) == rxHead)
return 0;
// move to next char
if(++(*pbIndex) >= SZ_RXBUFFER)
(*pbIndex) -= SZ_RXBUFFER;
return 1;
}
////////////////////////////////////////////////////////////
// RECEIVE MIDI MESSAGE
// Return the status byte or 0 if nothing complete received
// caller must check midiParams array for byte 1 and 2
byte receiveMessage()
{
// buffer overrun error?
if(rcsta.1)
{
rcsta.4 = 0;
rcsta.4 = 1;
}
// any data in the buffer?
if(rxHead == rxTail)
return 0;
// peek at next char in buffer
byte rxPos = rxTail;
byte q = rxBuffer[rxPos];
// is it a channel msg
if((q&0x80)>0)
{
runningStatus = 0;
switch(q&0xf0)
{
case 0x80: // Note-off 2 key velocity
case 0x90: // Note-on 2 key veolcity
case 0xA0: // Aftertouch 2 key touch
case 0xB0: // Continuous controller 2 controller # controller value
case 0xC0: // Patch change 2 instrument #
case 0xE0: // Pitch bend 2 lsb (7 bits) msb (7 bits)
runningStatus = q;
numParams = 2;
break;
case 0xD0: // Channel Pressure 1 pressure
runningStatus = q;
numParams = 1;
break;
case 0xF0: // (non-musical commands) - ignore all data for now
return q;
}
// step over the message
if(!rxInc(&rxPos))
return 0;
}
// do we have an active channel message
if(runningStatus)
{
// read params
for(int thisParam = 0; thisParam < numParams; ++thisParam)
{
midiParams[thisParam] = rxBuffer[rxPos];
if(!rxInc(&rxPos))
return 0;
}
// commit removal of message
rxTail = rxPos;
return runningStatus;
}
else
{
// remove char from the buffer
rxInc(&rxTail);
return q;
}
return 0;
}
void main()
{
// osc control / 8MHz / internal
osccon = 0b01110001;
// timer0... configure source and prescaler
cmcon0 = 7;
// enable serial receive interrupt
intcon = 0b11000000;
pie1.5 = 1;
// configure io
trisa = 0b00010000;
trisc = 0b00110000;
ansel = 0b00000000;
porta=0;
portc=0;
memset(tmr,0,sizeof(tmr));
// initialise MIDI comms
init_usart();
// loop forever
for(;;)
{
// get next MIDI note
byte msg = receiveMessage();
if(msg)
{
byte note = midiParams[0];
if(note >= 48 && note < 52)
{
int which = note-48;
// 0x90 note on
// 0x80 note ff
if((msg & 0xf0) == 0x90)
{
tmr[which] = 200;
}
}
}
for(int i=0;i<4;++i)
{
if(tmr[i] > 0)
tmr[i]--;
}
porta.2 = (tmr[0]>0)?1:0;
portc.0 = (tmr[1]>0)?1:0;
portc.1 = (tmr[2]>0)?1:0;
portc.2 = (tmr[3]>0)?1:0;
}
}
Based on PIC16F688 and building on the MIDI input code used on my earlier POKEY project
include <system.h>
#include <memory.h>
#pragma DATA _CONFIG, _MCLRE_OFF & _WDT_OFF & _INTRC_OSC_NOCLKOUT
#pragma CLOCK_FREQ 8000000
typedef unsigned char byte;
// define the pins
//#define P_LED portc.0
// MIDI defs
#define MIDIMSG(b) ((b)>>4)
#define MIDICHAN(b) ((b)&0xf)
#define MIDIMSG_NOTEON 0x09
#define MIDIMSG_NOTEOFF 0x08
// MIDI message registers
byte runningStatus = 0;
int numParams = 0;
byte midiParams[2] = {0};
#define SZ_RXBUFFER 20
byte rxBuffer[SZ_RXBUFFER];
byte rxHead = 0;
byte rxTail = 0;
int tmr[4] = {0};
////////////////////////////////////////////////////////////
// INTERRUPT HANDLER CALLED WHEN CHARACTER RECEIVED AT
// SERIAL PORT
void interrupt( void )
{
// check if this is serial rx interrupt
if(pir1.5)
{
// get the byte
byte b = rcreg;
// calculate next buffer head
byte nextHead = (rxHead + 1);
if(nextHead >= SZ_RXBUFFER)
{
nextHead -= SZ_RXBUFFER;
}
// if buffer is not full
if(nextHead != rxTail)
{
// store the byte
rxBuffer[rxHead] = b;
rxHead = nextHead;
}
}
}
////////////////////////////////////////////////////////////
// INITIALISE SERIAL PORT FOR MIDI
void init_usart()
{
pir1.1 = 1; //TXIF
pir1.5 = 0; //RCIF
pie1.1 = 0; //TXIE no interrupts
pie1.5 = 1; //RCIE interrupt on receive
baudctl.4 = 0; // SCKP synchronous bit polarity
baudctl.3 = 1; // BRG16 enable 16 bit brg
baudctl.1 = 0; // WUE wake up enable off
baudctl.0 = 0; // ABDEN auto baud detect
txsta.6 = 0; // TX9 8 bit transmission
txsta.5 = 1; // TXEN transmit enable
txsta.4 = 0; // SYNC async mode
txsta.3 = 0; // SEDNB break character
txsta.2 = 0; // BRGH high baudrate
txsta.0 = 0; // TX9D bit 9
rcsta.7 = 1; // SPEN serial port enable
rcsta.6 = 0; // RX9 8 bit operation
rcsta.5 = 1; // SREN enable receiver
rcsta.4 = 1; // CREN continuous receive enable
spbrgh = 0; // brg high byte
spbrg = 15; // brg low byte (31250)
}
byte rxInc(byte *pbIndex)
{
// any data in the buffer?
if((*pbIndex) == rxHead)
return 0;
// move to next char
if(++(*pbIndex) >= SZ_RXBUFFER)
(*pbIndex) -= SZ_RXBUFFER;
return 1;
}
////////////////////////////////////////////////////////////
// RECEIVE MIDI MESSAGE
// Return the status byte or 0 if nothing complete received
// caller must check midiParams array for byte 1 and 2
byte receiveMessage()
{
// buffer overrun error?
if(rcsta.1)
{
rcsta.4 = 0;
rcsta.4 = 1;
}
// any data in the buffer?
if(rxHead == rxTail)
return 0;
// peek at next char in buffer
byte rxPos = rxTail;
byte q = rxBuffer[rxPos];
// is it a channel msg
if((q&0x80)>0)
{
runningStatus = 0;
switch(q&0xf0)
{
case 0x80: // Note-off 2 key velocity
case 0x90: // Note-on 2 key veolcity
case 0xA0: // Aftertouch 2 key touch
case 0xB0: // Continuous controller 2 controller # controller value
case 0xC0: // Patch change 2 instrument #
case 0xE0: // Pitch bend 2 lsb (7 bits) msb (7 bits)
runningStatus = q;
numParams = 2;
break;
case 0xD0: // Channel Pressure 1 pressure
runningStatus = q;
numParams = 1;
break;
case 0xF0: // (non-musical commands) - ignore all data for now
return q;
}
// step over the message
if(!rxInc(&rxPos))
return 0;
}
// do we have an active channel message
if(runningStatus)
{
// read params
for(int thisParam = 0; thisParam < numParams; ++thisParam)
{
midiParams[thisParam] = rxBuffer[rxPos];
if(!rxInc(&rxPos))
return 0;
}
// commit removal of message
rxTail = rxPos;
return runningStatus;
}
else
{
// remove char from the buffer
rxInc(&rxTail);
return q;
}
return 0;
}
void main()
{
// osc control / 8MHz / internal
osccon = 0b01110001;
// timer0... configure source and prescaler
cmcon0 = 7;
// enable serial receive interrupt
intcon = 0b11000000;
pie1.5 = 1;
// configure io
trisa = 0b00010000;
trisc = 0b00110000;
ansel = 0b00000000;
porta=0;
portc=0;
memset(tmr,0,sizeof(tmr));
// initialise MIDI comms
init_usart();
// loop forever
for(;;)
{
// get next MIDI note
byte msg = receiveMessage();
if(msg)
{
byte note = midiParams[0];
if(note >= 48 && note < 52)
{
int which = note-48;
// 0x90 note on
// 0x80 note ff
if((msg & 0xf0) == 0x90)
{
tmr[which] = 200;
}
}
}
for(int i=0;i<4;++i)
{
if(tmr[i] > 0)
tmr[i]--;
}
porta.2 = (tmr[0]>0)?1:0;
portc.0 = (tmr[1]>0)?1:0;
portc.1 = (tmr[2]>0)?1:0;
portc.2 = (tmr[3]>0)?1:0;
}
}
Saturday, 18 September 2010
Tesla Coil Diary - Part 1
I've wanted to own a Tesla coil pretty much since I knew what one was, but I always thought it would be a bit difficult to make and possibly a little bit dangerous... Anyway, I decided to bite the bullet and started gathering the bits a couple of months back and actually started the building of it a couple of weeks ago after I got the courage to fire up the 10kV Neon Sign Transformer I got off ebay.
I got all the information and many great tips of websites of other coilers and have borrowed many ideas. I will try to remember and credit as much as I can.
I started off by getting this neon transformer
its a 10kV 50mA F.A.R.T. (oh the fun!) Resinblock. Here is my first try out of it, making a Jacobs ladder from coat hanger wire....
So far so good...
After a bit of online reading I eventually decided to wind my secondary coil on 125mm PVC ducting pipe (After deciding the 68mm drainpipe I first bought was just too wimpy). I got a nice 2Kg reel of 0.71mm magnet wire from ebay and got winding. I initially rigged up a motor driven jig to wind the wire but ended up winding by hand so I could keep a good tension on the wire (The motor came in very useful later while varnishing). I wound 800 turns in a couple of hours then put on about 5 coats of polyurethane gloss varnish. I used kapton tape to secure the outer windings (I owe http://deepfriedneon.com/ for many tips I used ... given my DIY prowess, without this information I would have ended in disaster I am sure)
Here is my winding rig...
I got all the information and many great tips of websites of other coilers and have borrowed many ideas. I will try to remember and credit as much as I can.
I started off by getting this neon transformer
So far so good...
After a bit of online reading I eventually decided to wind my secondary coil on 125mm PVC ducting pipe (After deciding the 68mm drainpipe I first bought was just too wimpy). I got a nice 2Kg reel of 0.71mm magnet wire from ebay and got winding. I initially rigged up a motor driven jig to wind the wire but ended up winding by hand so I could keep a good tension on the wire (The motor came in very useful later while varnishing). I wound 800 turns in a couple of hours then put on about 5 coats of polyurethane gloss varnish. I used kapton tape to secure the outer windings (I owe http://deepfriedneon.com/ for many tips I used ... given my DIY prowess, without this information I would have ended in disaster I am sure)
Here is my winding rig...
I was quite pleased with the end result, which looked nicely like something from a B-movie mad scientists lab.
I originally bought 6mm microbore copper tubing to make my primary coil, but realised that I had not bought enough, and it was rather too expensive to go and buy another, longer length, so I looked around for alternatives and found some 4.75mm solid aluminium wire at the much better price of £12 for 20 metres. The wire was a lot softer and easier to kink than I expected and at first I wasn't too happy with the result. But after some reworking I think its OK. Here is the result (set on MDF with acrylic stands secured with nylon zipties)
I managed about 17 turns. I think I need to tap the coil after about 10 turns based on what Tesla Coil CAD told me - but I thought it would be good to have the extra tunability offered by the extra coils
For the top load I got some 10mm semi-rigid aluminium ducting hose (as is a coiler traditional I believe) and set it between two 34cm steel trays from the local 99p shop (these have to be the best bargain of this build!). This whole procedure was more difficult than it probably sounds... I needed to bolt the trays together first, with a wood spacer, then use tensioned strips of gaffer tape to hold the 2 plates parallel to each other. Then I threaded a rubber bungee cord through the flexible duct and after putting the ducting around the rim of the trays I hooked up the bungee and spread the out ducting round the rim until it joined up. I used a bit of flexible plastic sheet to make a sleeve to put inside one end of the ducting and help join the ends together. A bit of aluminium tape joined the ends, then more aluminimum tape to secure the ducting on the rim of the trays (helpful tips from http://www.hvtesla.com/toroid.html)
It might not be the best looking toroid, but it does look pretty meaty and mean!
Next steps are to add a strike rail to the primary (finally getting some use out of that microbore copper pipe), build a chassis (in progress - out of chipboard and softwood) and add fittings to secure it all together properly without danger of it collapsing. In the mean time here are the parts stacked on top of each other for a photo opportunity....
And so onto the electrics... I threw caution to the wind and got some Cornell Dubilier 942C20P15K-F capacitors, which a bit of online research seemed to indicate were THE choice for a good coil, even though they are not cheap, especially when factoring postage from US to UK. My capacitor bank has 28 of these 0.15uF, 2000V capacitors arranged in two parallel strings of 14. I mounted them on clear acrylic and wired them up with 1M bleeder resistors using high current wire taken from a set of car jump leads.
I just made my spark gap this weekend... I initially intended making a cylindrical "Richard Quick" type design but I preferred the idea I saw on a web site (which I would credit if I could find it again) where the multiple copper tubes are laid out side by side on the top of a box, and air is drawn through them by fans mounted on the ends of the box. Airflow keeps the gaps cool, but also sucks away ionised air from the gaps and quenches the sparks more quickly, which (so I read) results in better operation of the coil.
I made the spark gap box from acrylic sheets with an 85mm 240VAC fans (from Maplin) mounted at each end. 10 copper tubes of 15mm diameter and 90mm length form the gap. Two layers of kapton tape at each end of each copper tube provide spacing of ~0.4mm between tubes when they are laid side by side. Connection is made (at the moment) by a plug of compressed aluminium foil around which is wound the connection wire (car jump lead) inside the two "terminal" tubes. I am not sure how well this arrangment is going to work... we shall see.. The tubes are not permanently attached to the box, so my idea is that the number of tubes included in the gap can be varied by moving one of the tubes to which the wire is attached (the other being fixed at one side) by simply removing and shuffling the tubes.
I still need to complete build of the Terry Filter circuit (which I hope will protect the neon transformer from voltage surges) as well as the structural bits and pieces, however I hope I can get this thing up and running before too much longer. Watch this space for the results....
Wednesday, 30 June 2010
DIY Boss PC-2 / Amdek PCK100 Analog Percussion Synth
Back at the end of the 80's I went in a music shop in London and on impulse I bought this wierd BOSS box that made weird bloopy noises... a PC-2 Percussion Synthesizer. It wasn't a difficult decision at the time since it only cost me £10 brand new boxed (I think they were trying to get rid of them) and it came with a free brand new BOSS HC-2 Hand Clapper pedal, although that seemed even less useful (though the guy did a good sales pitch involving a tale about a friend with no arms who had trouble applauding at gigs... :o)
Apart from a bit of novelty value I gotta be honest they didn't get a lot of use... I think the HC-2 got chucked during a house cleanout and the PC-2 was sold on ebay a few years back (and was amazed to get £100 for it). Well now I am kicking myself and wished I'd held on to these two collectables.
So when I saw the schematic of the Amdek PCK100 online (actually a kit form of the PC-2 sold by a Roland affiliate) I decided to try to make one and once again re-live boingy noise heaven.
On the page http://www.effectsdatabase.com/model/amdek/pck100 where I found the schematic I also found a photo of the PCB and decided to try to use it directly. With some manipulation in Paint Shop Pro and the use of Press'n'Peel PCB etching film I was able to make a copy of the board and after working out some workarounds (e.g. using BA6110 instead of ultra-rare BA662A VCA chip) I actually got it to work.. So in case you're interested ..here is how I did it
1) I started off with this photo of the track side of the original PCB
2) Turned to mono, upped the contrast, then very carefully use the "eraser" tool to ensure there are good clean gaps between all the tracks
3) Marked drill holes with circles
4) Drop colour depth to 2 colours
5) Negative image and a few embellishments and its ready to press'n'peel
6) Laser printed etch-resist transferred to copper clad board using a hot iron
7) Etched, drilled and trimmed ready for components
I mounted the board inside a project box from Maplin. By the way I have a thing for Dymo embossed label tape :)
The Amdek user guide gives info on some mods to the board (VCO wave form change, mod waveform change) which I added toggle switches for. Usually the Sweep control is a center tap pot.. I didn't have one so I instead rigged up a DPDT toggle and a resistor to a normal pot so that the same effect could be acheived (although I am not sure it works so well)
The original board calls for a Roland BA662A VCA chip... you won't find one! you can use a similar BA6110 chip but the pinout is different. I found the following worked
Apart from a bit of novelty value I gotta be honest they didn't get a lot of use... I think the HC-2 got chucked during a house cleanout and the PC-2 was sold on ebay a few years back (and was amazed to get £100 for it). Well now I am kicking myself and wished I'd held on to these two collectables.
So when I saw the schematic of the Amdek PCK100 online (actually a kit form of the PC-2 sold by a Roland affiliate) I decided to try to make one and once again re-live boingy noise heaven.
On the page http://www.effectsdatabase.com/model/amdek/pck100 where I found the schematic I also found a photo of the PCB and decided to try to use it directly. With some manipulation in Paint Shop Pro and the use of Press'n'Peel PCB etching film I was able to make a copy of the board and after working out some workarounds (e.g. using BA6110 instead of ultra-rare BA662A VCA chip) I actually got it to work.. So in case you're interested ..here is how I did it
1) I started off with this photo of the track side of the original PCB
The Amdek user guide gives info on some mods to the board (VCO wave form change, mod waveform change) which I added toggle switches for. Usually the Sweep control is a center tap pot.. I didn't have one so I instead rigged up a DPDT toggle and a resistor to a normal pot so that the same effect could be acheived (although I am not sure it works so well)
The original board calls for a Roland BA662A VCA chip... you won't find one! you can use a similar BA6110 chip but the pinout is different. I found the following worked
- socket 1 connect to BA6110 pin# 4
- socket 2 connect to BA6110 pin# 2
- socket 3 connect to BA6110 pin# 1
- socket 4 no connection. BA6110 pin#3 connected to GND (pin 5)
- socket 5 connect to BA6110 pin#5
- socket 6 connect to BA6110 pin#6
- socket 7 connect to BA6110 pin#7
- socket 8 connect to BA6110 pin#8
- socket 9 connect to BA6110 pin#9
Tuesday, 11 May 2010
Battlezone with lasers
This is a project I've had simmering on the back burner for a while. Still at the early stages but thought it might be fun to keep track of each step here
A few months back I got a 20kps laser scanner galvo set off ebay with the intention of making my own laser projector and a vision of using it to play some old vector arcade games... particularly my old fave Atari Battlezone. The arcade game bit seemed pretty easy, since you can play BZ on the open source MAME emulator so I thought I could hook into the vector terminal emulation.
I found the asynchronous UART on an Arduino board was not quite fast enough to cope with the data... dropping bits all over the place, so I started looking at a USB conneciton to a PIC2455. As a SourceBoost C user I was not able to find any easy to understand USB CDC (Communication Device Class, a.k.a serial port) implementations for the PIC - so I decided to make my own, leaning heavily on sample code I found online.
Well I finally got to the point where my PIC would connect via USB show up as a COM port and be easy to access from a Windows program. Then I hooked up an 12-bit SPI dual DAC and connected it to the galvo setup and tried the first random hacking into MAMEs vector module.
I didn't expect it to work first time, and didn't! but my impatient hacking did produce some interesting squiggles at about 2 fps. I needed to use a long exposure photograph to actually make sense of it, but eventually I recognised a couple of parts of the display and got quite excited that the concept was proved!
The coordinate handling is obviously messed up and the image is wrapping on itself multiple times, also there is no attempt at blanking yet - so there are stray lines all over. The big job will be to find some way to optimise the render list to stop throwing the galvos all over the place and improve on the 2 fps refresh!
As you can see I have a long way to go!
Here is the plot showing the bits I recognised
A few months back I got a 20kps laser scanner galvo set off ebay with the intention of making my own laser projector and a vision of using it to play some old vector arcade games... particularly my old fave Atari Battlezone. The arcade game bit seemed pretty easy, since you can play BZ on the open source MAME emulator so I thought I could hook into the vector terminal emulation.
I found the asynchronous UART on an Arduino board was not quite fast enough to cope with the data... dropping bits all over the place, so I started looking at a USB conneciton to a PIC2455. As a SourceBoost C user I was not able to find any easy to understand USB CDC (Communication Device Class, a.k.a serial port) implementations for the PIC - so I decided to make my own, leaning heavily on sample code I found online.
Well I finally got to the point where my PIC would connect via USB show up as a COM port and be easy to access from a Windows program. Then I hooked up an 12-bit SPI dual DAC and connected it to the galvo setup and tried the first random hacking into MAMEs vector module.
I didn't expect it to work first time, and didn't! but my impatient hacking did produce some interesting squiggles at about 2 fps. I needed to use a long exposure photograph to actually make sense of it, but eventually I recognised a couple of parts of the display and got quite excited that the concept was proved!
The coordinate handling is obviously messed up and the image is wrapping on itself multiple times, also there is no attempt at blanking yet - so there are stray lines all over. The big job will be to find some way to optimise the render list to stop throwing the galvos all over the place and improve on the 2 fps refresh!
As you can see I have a long way to go!
Here is the plot showing the bits I recognised
Here is an actual MAME screen showing what it should look like
If things improve I will post an update!
Monday, 3 May 2010
Motion detection to midi with puredata
another experiment with puredata, webcam image is passed through pix_movement object and a pix_blob turns the result into two midi note streams which are sent into reason via midi yoke. the image is the output of the pix_movement (difference between frames)
I put the pd patch at http://sites.google.com/site/skriyl/Home/pd-projects (motion noise.pd)
The patch outputs on midi channels 1 and 2. I used midi yoke and PD's midi output, then piped this into propellerheads reason, where you can use the "advanced midi" to set up midi bus A then lock down channels 1 and 2 to specific instruments in the rack. I used an NNXT with glockenspiel patch and nn19 with strings patch
I put the pd patch at http://sites.google.com/site/skriyl/Home/pd-projects (motion noise.pd)
The patch outputs on midi channels 1 and 2. I used midi yoke and PD's midi output, then piped this into propellerheads reason, where you can use the "advanced midi" to set up midi bus A then lock down channels 1 and 2 to specific instruments in the rack. I used an NNXT with glockenspiel patch and nn19 with strings patch
Sunday, 2 May 2010
First play with PureData
I was thinking about making a midi "harp" and thought of trying with a webcam, using puredata to analyse the images and generate midi/sounds. This is the first time I have played with PD and I don't really know what I am doing with it yet... you'll see I am not quite there with the midi harp yet, but I am impressed with how quickly you can get something fun working in PD

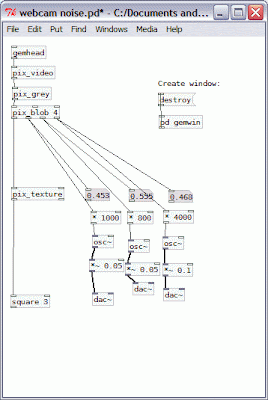

Here is the PD sketch, which I got to by hacking about with one of the GEM tutorial sketches
Here is the PD sketch, which I got to by hacking about with one of the GEM tutorial sketches
Thursday, 22 April 2010
Matrix feedback in Reason
How to do something like this...
A great thing about Reason is that it allows you to wire a continuous input (like a CV, MIDI CC#, Mod wheel etc) to pattern changes on something like the Matrix sequencer or Redrum. You can't do this directly (there is no pattern change CV input) but you can do it via the "programmer" in the combinator. This is a great thing to experiment with...especially if the patterns are different beat lengths/step values and you layer a few of them . In one of my other clips I used MIDI CC# signals generated by a Lavalamp to randomly switch patterns on a set of Redrum modules.
In the above above clip I have 3 matrix sequences driving each other, which can result in some random sounding patterns which repeat over long periods and can descend into chaos with one small tweak.. eventually arriving at a new repeating cycle (of course you need to drive one or more sound modules like NNXT etc with the matrix outputs to be able to hear anything...)
Start by making a Combinator...
Inside the combinator, create 3 matrix sequencers.
Wire Curve CV output from each Matrix Rotary inputs 1,2,3 on the combinator. Ensure these are only connections between matrixes (-ices?) and combinator
Click the "show programmer" button. Click on Matrix 1 and next to "Rotary 2" source select "Pattern Select" target. For Matrix 2 map Rotary 3 to pattern select, For Matrix 3 map Rotary 1 to pattern select
Flip to Curve view on each matrix and draw a few random curves (Randomize pattern option can be good). Start the Matrixes and click randomly on their pattern screens. Soon they should be flicking between patterns almost at random
Wire the Gate and Note CV outputs of one or more matrix to a sound module such as NNXT.
Flip the matrixes to note mode and click at random on the screens. Change pattern lengths and note resolutions, try the "randomize pattern" option. After a while things should be getting pretty freaked out
Tuesday, 23 March 2010
Pre programmed PICs
Following some requests, I have listed pre-programmed PICs on ebay for a couple of my projects. If there is much interest (and its not all a massive hassle) I might also look into getting some PCBs made up and putting kits together
For now here are the PICs http://cgi.ebay.co.uk/ws/eBayISAPI.dll?ViewItem&item=150426687494
For now here are the PICs http://cgi.ebay.co.uk/ws/eBayISAPI.dll?ViewItem&item=150426687494
POKEY sound chip experiments
The Atari POKEY was the classic soundchip in the Atari 8-bit home computers and many 1980's arcade games. This clip shows some of my experiments in driving a POKEY from MIDI. A PIC receives MIDI data and two 74HC595 shift registers are used to assemble the 12 lines of bus data for the POKEY so it can be driven from a humble 14 pin PIC16F688. A 6N139 isolator is placed between MIDI in from PC and the PIC's serial input. The POKEY is clocked at 2MHz from the PIC's internal clock output.
I am using REAPER to sequence some MIDI files I found on the internet. Credit goes out to the authors of these MIDI files.. also to YouTube member little-scale, whose clips inspired me to poke about with the POKEY in the first place, and Bryan Edewaard, whose crib sheet I could not have done this without.
Here is the schematic for the circuit as built on breadboard (I am working on neater, stripboard based version)
And the source code for SOURCEBOOST C on the PIC16F688
#include <system.h>
#include <memory.h>
// PIC CONFIG (_INTRC_OSC_CLKOUT is needed so we output clock
// clock signal on pin 3)
#pragma DATA _CONFIG, _MCLRE_OFF & _WDT_OFF & _INTRC_OSC_CLKOUT
#pragma CLOCK_FREQ 8000000
typedef unsigned char byte;
// define the pins
#define P_DATA portc.0
#define P_SHCK portc.2
#define P_STCK portc.1
#define P_POKEY portc.3
// define "pure" tone sound mode. Other settings
// of bits 4-7 will add varying levels of distortion
#define POKEY_SOUNDMODE 0b10100000
// MIDI defs
#define MIDIMSG(b) ((b)>>4)
#define MIDICHAN(b) ((b)&0xf)
#define MIDIMSG_NOTEON 0x09
#define MIDIMSG_NOTEOFF 0x08
// structure for managing channel info
typedef struct
{
byte midiNote; // triggered MIDI note
byte note; // POKEY divider value
byte volume; // volume (bits 0-3)
byte count; // playing duration counter
} CHANNEL;
// Buffer to hold state of 4 POKEY voice channels
CHANNEL chan[4] = {0};
// MIDI message registers
byte runningStatus = 0;
byte midiParams[2] = {0};
byte numParams = 0;
byte thisParam = 0;
// Divider values for POKEY channels
byte notes[48] = {
250, // C#2
236, // D2
222, // D#2
210, // E2
198, // F2
187, // F#2
177, // G2
167, // G#2
157, // A2
148, // A#2
140, // B2
132, // C3
125, // C#3
118, // D3
111, // D#3
105, // E3
99, // F3
94, // F#3
88, // G3
83, // G#3
79, // A3
74, // A#3
70, // B3
66, // C4
62, // C#4
59, // D4
56, // D#4
52, // E4
50, // F4
47, // F#4
44, // G4
42, // G#4
39, // A4
37, // A#4
35, // B4
33, // C5
31, // C#5
29, // D5
28, // D#5
26, // E5
25, // F5
23, // F#5
22, // G5
21, // G#5
20, // A5
19, // A#5
18, // B5
17 // C6
};
////////////////////////////////////////////////////////////
// INITIALISE SERIAL PORT FOR MIDI
void init_usart()
{
pir1.1 = 1; //TXIF
pir1.5 = 0; //RCIF
pie1.1 = 0; //TXIE no interrupts
pie1.5 = 0; //RCIE no interrupts
baudctl.4 = 0; // SCKP synchronous bit polarity
baudctl.3 = 1; // BRG16 enable 16 bit brg
baudctl.1 = 0; // WUE wake up enable off
baudctl.0 = 0; // ABDEN auto baud detect
txsta.6 = 0; // TX9 8 bit transmission
txsta.5 = 1; // TXEN transmit enable
txsta.4 = 0; // SYNC async mode
txsta.3 = 0; // SEDNB break character
txsta.2 = 0; // BRGH high baudrate
txsta.0 = 0; // TX9D bit 9
rcsta.7 = 1; // SPEN serial port enable
rcsta.6 = 0; // RX9 8 bit operation
rcsta.5 = 1; // SREN enable receiver
rcsta.4 = 1; // CREN continuous receive enable
spbrgh = 0; // brg high byte
spbrg = 15; // brg low byte (31250)
}
////////////////////////////////////////////////////////////
// RECEIVE MIDI MESSAGE
// Return the status byte or 0 if nothing complete received
// caller must check midiParams array for byte 1 and 2
byte receiveMessage()
{
// loop until there is no more data or
// we receive a full message
for(;;)
{
// buffer overrun error?
if(rcsta.1)
{
rcsta.4 = 0;
rcsta.4 = 1;
}
// poll for a MIDI byte
if(!pir1.5)
{
// no data ready
return 0;
}
// read the character
byte q = rcreg;
pir1.5 = 0;
// is it a channel msg
if((q&0x80)>0)
{
numParams = 0;
thisParam = 0;
switch(q&0xf0)
{
case 0x80: // Note-off 2 key velocity
case 0x90: // Note-on 2 key veolcity
case 0xA0: // Aftertouch 2 key touch
case 0xB0: // Continuous controller 2 controller # controller value
case 0xC0: // Patch change 2 instrument #
case 0xE0: // Pitch bend 2 lsb (7 bits) msb (7 bits)
runningStatus = q;
numParams = 2;
break;
case 0xD0: // Channel Pressure 1 pressure
runningStatus = q;
numParams = 1;
break;
case 0xF0: // (non-musical commands) - ignore all data for now
runningStatus = 0;
return q;
}
}
// else do we have a channel message?
else if(runningStatus)
{
// fill in next command parameter
midiParams[thisParam++] = q;
if(thisParam>=numParams)
{
// return the command
thisParam = 0;
return runningStatus;
}
}
}
return 0;
}
////////////////////////////////////////////////////////////
// DRIVE DATA OUT TO SHIFT REGISTERS
// m is a bit mask to highest bit in the data
void dataOut(byte d, byte m)
{
while(m)
{
// shift clock low
P_SHCK = 0;
// data out
P_DATA = (d&m)?1:0;
// shift clock high
P_SHCK = 1;
// shift the mask
m>>=1;
}
}
////////////////////////////////////////////////////////////
// WRITE ADDRESS AND DATA TO POKEY
void writePokey(byte address, byte data)
{
// store clock low
P_STCK = 0;
// fill the shift regs
dataOut(address,0x08);
dataOut(data,0x80);
// store clock high
P_STCK = 1;
// pulse POKEY chip enable line
P_POKEY = 0;
delay_us(100);
P_POKEY = 1;
delay_us(100);
}
////////////////////////////////////////////////////////////
// POKEY RESET SEQUENCE
void resetPokey()
{
// fill all locations with 0
for(int i=0;i<16;++i)
writePokey(i, 0);
// reset sequence
writePokey(0x0f, 3);
writePokey(0x09, 1);
}
////////////////////////////////////////////////////////////
// HANDLE MIDI NOTE TRIGGER (ON OR OFF)
// MANAGES THE 4 VOICES
void handleNote(byte midiNote, byte midiVelocity)
{
int iAlreadyPlaying = -1;
int iFree = -1;
int iSteal = -1;
int iUpdatePOKEY = -1;
int iLongestPlay = -1;
// map 7-bit MIDI velocity to 4-bit POKEY volume
byte volume = midiVelocity >> 3;
// scan through the 4 channels
for(int i=0;i<4;++i)
{
// incremement play duration counter for this
// channel. we use this counter to detect which
// note has been playing longest if we need to
// steal a channel
chan[i].count++;
// check if the note is already playing on channel
if(chan[i].midiNote == midiNote)
{
iAlreadyPlaying = i;
}
// else is channel spare?
else if(!chan[i].midiNote)
{
iFree = i;
}
// else is channel the longest playing channel?
else if(chan[i].count > iLongestPlay)
{
iLongestPlay = chan[i].count;
iSteal = i;
}
}
// already got a channel playing this note?
if(iAlreadyPlaying > 0 )
{
// need to stop a note?
if(!volume)
{
// turn a note off
chan[iAlreadyPlaying].midiNote = 0;
chan[iAlreadyPlaying].note = 0;
chan[iAlreadyPlaying].volume = 0;
chan[iAlreadyPlaying].count = 0;
iUpdatePOKEY = iAlreadyPlaying;
}
}
// else check we have a nonzero volume. We will ignore
// zero volume requests against any note that is not already
// playing
else if(volume>0)
{
// convert from MIDI note to index in the notes[] array
byte note = midiNote;
while(note<37) note+=12; // 37 is lowest MIDI note we map
while(note>84) note-=12; // 84 is highest MIDI note we map
note-=37; // convert to array index value
// got a free channel?
if(iFree>0)
{
// use it
chan[iFree].midiNote = midiNote;
chan[iFree].note = notes[note];
chan[iFree].volume = volume;
chan[iFree].count = 0;
iUpdatePOKEY = iFree;
}
// else steal a channel from another note
else if(iSteal>0)
{
chan[iSteal].midiNote = midiNote;
chan[iSteal].note = notes[note];
chan[iSteal].volume = volume;
chan[iSteal].count = 0;
iUpdatePOKEY = iSteal;
}
}
// do we need to tell the POKEY anything?
if(iUpdatePOKEY > 0)
{
// make it so!
writePokey(0 + iUpdatePOKEY*2, chan[iUpdatePOKEY].note);
writePokey(1 + iUpdatePOKEY*2, POKEY_SOUNDMODE|chan[iUpdatePOKEY].volume);
}
}
void main()
{
// osc control / 8MHz / internal
osccon = 0b01110001;
// timer0... configure source and prescaler
cmcon0 = 7;
// configure io
trisa = 0b00010000;
trisc = 0b00110000;
ansel = 0b00000000;
// initialise MIDI comms
init_usart();
// reset the POKEY
resetPokey();
// loop forever
for(;;)
{
// get next MIDI note
byte msg = receiveMessage();
// handle note on/off (transpose down 1 octave)
if(MIDIMSG_NOTEON == MIDIMSG(msg))
handleNote(midiParams[0]-12, midiParams[1]);
else if(MIDIMSG_NOTEOFF == MIDIMSG(msg))
handleNote(midiParams[0]-12, 0);
}
}
I am using REAPER to sequence some MIDI files I found on the internet. Credit goes out to the authors of these MIDI files.. also to YouTube member little-scale, whose clips inspired me to poke about with the POKEY in the first place, and Bryan Edewaard, whose crib sheet I could not have done this without.
Here is the schematic for the circuit as built on breadboard (I am working on neater, stripboard based version)
And the source code for SOURCEBOOST C on the PIC16F688
#include <system.h>
#include <memory.h>
// PIC CONFIG (_INTRC_OSC_CLKOUT is needed so we output clock
// clock signal on pin 3)
#pragma DATA _CONFIG, _MCLRE_OFF & _WDT_OFF & _INTRC_OSC_CLKOUT
#pragma CLOCK_FREQ 8000000
typedef unsigned char byte;
// define the pins
#define P_DATA portc.0
#define P_SHCK portc.2
#define P_STCK portc.1
#define P_POKEY portc.3
// define "pure" tone sound mode. Other settings
// of bits 4-7 will add varying levels of distortion
#define POKEY_SOUNDMODE 0b10100000
// MIDI defs
#define MIDIMSG(b) ((b)>>4)
#define MIDICHAN(b) ((b)&0xf)
#define MIDIMSG_NOTEON 0x09
#define MIDIMSG_NOTEOFF 0x08
// structure for managing channel info
typedef struct
{
byte midiNote; // triggered MIDI note
byte note; // POKEY divider value
byte volume; // volume (bits 0-3)
byte count; // playing duration counter
} CHANNEL;
// Buffer to hold state of 4 POKEY voice channels
CHANNEL chan[4] = {0};
// MIDI message registers
byte runningStatus = 0;
byte midiParams[2] = {0};
byte numParams = 0;
byte thisParam = 0;
// Divider values for POKEY channels
byte notes[48] = {
250, // C#2
236, // D2
222, // D#2
210, // E2
198, // F2
187, // F#2
177, // G2
167, // G#2
157, // A2
148, // A#2
140, // B2
132, // C3
125, // C#3
118, // D3
111, // D#3
105, // E3
99, // F3
94, // F#3
88, // G3
83, // G#3
79, // A3
74, // A#3
70, // B3
66, // C4
62, // C#4
59, // D4
56, // D#4
52, // E4
50, // F4
47, // F#4
44, // G4
42, // G#4
39, // A4
37, // A#4
35, // B4
33, // C5
31, // C#5
29, // D5
28, // D#5
26, // E5
25, // F5
23, // F#5
22, // G5
21, // G#5
20, // A5
19, // A#5
18, // B5
17 // C6
};
////////////////////////////////////////////////////////////
// INITIALISE SERIAL PORT FOR MIDI
void init_usart()
{
pir1.1 = 1; //TXIF
pir1.5 = 0; //RCIF
pie1.1 = 0; //TXIE no interrupts
pie1.5 = 0; //RCIE no interrupts
baudctl.4 = 0; // SCKP synchronous bit polarity
baudctl.3 = 1; // BRG16 enable 16 bit brg
baudctl.1 = 0; // WUE wake up enable off
baudctl.0 = 0; // ABDEN auto baud detect
txsta.6 = 0; // TX9 8 bit transmission
txsta.5 = 1; // TXEN transmit enable
txsta.4 = 0; // SYNC async mode
txsta.3 = 0; // SEDNB break character
txsta.2 = 0; // BRGH high baudrate
txsta.0 = 0; // TX9D bit 9
rcsta.7 = 1; // SPEN serial port enable
rcsta.6 = 0; // RX9 8 bit operation
rcsta.5 = 1; // SREN enable receiver
rcsta.4 = 1; // CREN continuous receive enable
spbrgh = 0; // brg high byte
spbrg = 15; // brg low byte (31250)
}
////////////////////////////////////////////////////////////
// RECEIVE MIDI MESSAGE
// Return the status byte or 0 if nothing complete received
// caller must check midiParams array for byte 1 and 2
byte receiveMessage()
{
// loop until there is no more data or
// we receive a full message
for(;;)
{
// buffer overrun error?
if(rcsta.1)
{
rcsta.4 = 0;
rcsta.4 = 1;
}
// poll for a MIDI byte
if(!pir1.5)
{
// no data ready
return 0;
}
// read the character
byte q = rcreg;
pir1.5 = 0;
// is it a channel msg
if((q&0x80)>0)
{
numParams = 0;
thisParam = 0;
switch(q&0xf0)
{
case 0x80: // Note-off 2 key velocity
case 0x90: // Note-on 2 key veolcity
case 0xA0: // Aftertouch 2 key touch
case 0xB0: // Continuous controller 2 controller # controller value
case 0xC0: // Patch change 2 instrument #
case 0xE0: // Pitch bend 2 lsb (7 bits) msb (7 bits)
runningStatus = q;
numParams = 2;
break;
case 0xD0: // Channel Pressure 1 pressure
runningStatus = q;
numParams = 1;
break;
case 0xF0: // (non-musical commands) - ignore all data for now
runningStatus = 0;
return q;
}
}
// else do we have a channel message?
else if(runningStatus)
{
// fill in next command parameter
midiParams[thisParam++] = q;
if(thisParam>=numParams)
{
// return the command
thisParam = 0;
return runningStatus;
}
}
}
return 0;
}
////////////////////////////////////////////////////////////
// DRIVE DATA OUT TO SHIFT REGISTERS
// m is a bit mask to highest bit in the data
void dataOut(byte d, byte m)
{
while(m)
{
// shift clock low
P_SHCK = 0;
// data out
P_DATA = (d&m)?1:0;
// shift clock high
P_SHCK = 1;
// shift the mask
m>>=1;
}
}
////////////////////////////////////////////////////////////
// WRITE ADDRESS AND DATA TO POKEY
void writePokey(byte address, byte data)
{
// store clock low
P_STCK = 0;
// fill the shift regs
dataOut(address,0x08);
dataOut(data,0x80);
// store clock high
P_STCK = 1;
// pulse POKEY chip enable line
P_POKEY = 0;
delay_us(100);
P_POKEY = 1;
delay_us(100);
}
////////////////////////////////////////////////////////////
// POKEY RESET SEQUENCE
void resetPokey()
{
// fill all locations with 0
for(int i=0;i<16;++i)
writePokey(i, 0);
// reset sequence
writePokey(0x0f, 3);
writePokey(0x09, 1);
}
////////////////////////////////////////////////////////////
// HANDLE MIDI NOTE TRIGGER (ON OR OFF)
// MANAGES THE 4 VOICES
void handleNote(byte midiNote, byte midiVelocity)
{
int iAlreadyPlaying = -1;
int iFree = -1;
int iSteal = -1;
int iUpdatePOKEY = -1;
int iLongestPlay = -1;
// map 7-bit MIDI velocity to 4-bit POKEY volume
byte volume = midiVelocity >> 3;
// scan through the 4 channels
for(int i=0;i<4;++i)
{
// incremement play duration counter for this
// channel. we use this counter to detect which
// note has been playing longest if we need to
// steal a channel
chan[i].count++;
// check if the note is already playing on channel
if(chan[i].midiNote == midiNote)
{
iAlreadyPlaying = i;
}
// else is channel spare?
else if(!chan[i].midiNote)
{
iFree = i;
}
// else is channel the longest playing channel?
else if(chan[i].count > iLongestPlay)
{
iLongestPlay = chan[i].count;
iSteal = i;
}
}
// already got a channel playing this note?
if(iAlreadyPlaying > 0 )
{
// need to stop a note?
if(!volume)
{
// turn a note off
chan[iAlreadyPlaying].midiNote = 0;
chan[iAlreadyPlaying].note = 0;
chan[iAlreadyPlaying].volume = 0;
chan[iAlreadyPlaying].count = 0;
iUpdatePOKEY = iAlreadyPlaying;
}
}
// else check we have a nonzero volume. We will ignore
// zero volume requests against any note that is not already
// playing
else if(volume>0)
{
// convert from MIDI note to index in the notes[] array
byte note = midiNote;
while(note<37) note+=12; // 37 is lowest MIDI note we map
while(note>84) note-=12; // 84 is highest MIDI note we map
note-=37; // convert to array index value
// got a free channel?
if(iFree>0)
{
// use it
chan[iFree].midiNote = midiNote;
chan[iFree].note = notes[note];
chan[iFree].volume = volume;
chan[iFree].count = 0;
iUpdatePOKEY = iFree;
}
// else steal a channel from another note
else if(iSteal>0)
{
chan[iSteal].midiNote = midiNote;
chan[iSteal].note = notes[note];
chan[iSteal].volume = volume;
chan[iSteal].count = 0;
iUpdatePOKEY = iSteal;
}
}
// do we need to tell the POKEY anything?
if(iUpdatePOKEY > 0)
{
// make it so!
writePokey(0 + iUpdatePOKEY*2, chan[iUpdatePOKEY].note);
writePokey(1 + iUpdatePOKEY*2, POKEY_SOUNDMODE|chan[iUpdatePOKEY].volume);
}
}
void main()
{
// osc control / 8MHz / internal
osccon = 0b01110001;
// timer0... configure source and prescaler
cmcon0 = 7;
// configure io
trisa = 0b00010000;
trisc = 0b00110000;
ansel = 0b00000000;
// initialise MIDI comms
init_usart();
// reset the POKEY
resetPokey();
// loop forever
for(;;)
{
// get next MIDI note
byte msg = receiveMessage();
// handle note on/off (transpose down 1 octave)
if(MIDIMSG_NOTEON == MIDIMSG(msg))
handleNote(midiParams[0]-12, midiParams[1]);
else if(MIDIMSG_NOTEOFF == MIDIMSG(msg))
handleNote(midiParams[0]-12, 0);
}
}
Tuesday, 16 March 2010
Hand-cranked MIDI sequencer from a baked bean can
One empty baked bean tin, some lego and a stack of little magnets... stick magnets on the tin and slide them about to 'program' the sequencer, then grab hold of the 'transport control' and crank away.... The breadboard contains 5 hall-effect switches and a PIC16F688 to generate MIDI note on/off information. This is piped to Reason in the first half of the clip and to a Dave Smith Mopho synth in the second half.
I reckon with a baked bean tin about 16ft in diameter and about 25,000 magnets you could dump your sequencer software.. and you'd be getting some good aerobic exercise to boot :o)
Here is the schematic (if you make one, note that hall effect switches need the magnet to be the right way round.. if it does not trigger, flip the magnet over)
And the code (SourceBoost C... NOTE: you'll need programmer hardware like PICKit2 to burn the program to the PIC chip)
// HALL SENSOR TO MIDI NOTES
// J.Hotchkiss Mar2010
#include <system.h>
#include <memory.h>
// PIC CONFIG
#pragma DATA _CONFIG, _MCLRE_OFF&_WDT_OFF&_INTRC_OSC_NOCLKOUT
#pragma CLOCK_FREQ 8000000
#define P_SENSE1 porta.5
#define P_SENSE2 portc.2
#define P_SENSE3 portc.1
#define P_SENSE4 portc.0
#define P_SENSE5 porta.2
typedef unsigned char byte;
// INITIALISE SERIAL PORT FOR MIDI
void init_usart()
{
pir1.1 = 1; //TXIF transmit enable
pie1.1 = 0; //TXIE no interrupts
baudctl.4 = 0; // synchronous bit polarity
baudctl.3 = 1; // enable 16 bit brg
baudctl.1 = 0; // wake up enable off
baudctl.0 = 0; // disable auto baud detect
txsta.6 = 0; // 8 bit transmission
txsta.5 = 1; // transmit enable
txsta.4 = 0; // async mode
txsta.2 = 0; // high baudrate BRGH
rcsta.7 = 1; // serial port enable
rcsta.6 = 0; // 8 bit operation
rcsta.4 = 0; // enable receiver
spbrgh = 0; // brg high byte
spbrg = 15; // brg low byte (31250)
}
////////////////////////////////////////////////////////////
// SEND A MIDI BYTE
void send(unsigned char c)
{
txreg = c;
while(!txsta.1);
}
////////////////////////////////////////////////////////////
// CONTINUOUS CONTROLLER MESSAGE
void sendController(byte channel, byte controller, byte value)
{
send(0xb0 | channel);
send(controller&0x7f);
send(value&0x7f);
}
////////////////////////////////////////////////////////////
// NOTE MESSAGE
void startNote(byte channel, byte note, byte value)
{
send(0x90 | channel);
send(note&0x7f);
send(value&0x7f);
}
void main()
{
// osc control / 8MHz / internal
osccon = 0b01110001;
// timer0... configure source and prescaler
option_reg = 0b10000011;
cmcon0 = 7;
porta=0;
wpua=0;
portc=0;
// configure io
trisa = 0b00100100;
trisc = 0b00001111;
ansel = 0b00000000;
// initialise MIDI comms
init_usart();
// Set up the MIDI notes for each sensor
byte note[5] = {60,62,64,65,66};
// byte note[5] = {36,37,38,39,40}; // For Reason REDRUM
byte sense[5] = {0};
for(;;)
{
if(P_SENSE1 != sense[0])
{
startNote(0, note[0], P_SENSE1? 0:127);
sense[0] = P_SENSE1;
}
if(P_SENSE2 != sense[1])
{
startNote(0, note[1], P_SENSE2? 0:127);
sense[1] = P_SENSE2;
}
if(P_SENSE3 != sense[2])
{
startNote(0, note[2], P_SENSE3? 0:127);
sense[2] = P_SENSE3;
}
if(P_SENSE4 != sense[3])
{
startNote(0, note[3], P_SENSE4? 0:127);
sense[3] = P_SENSE4;
}
if(P_SENSE5 != sense[4])
{
startNote(0, note[4], P_SENSE5? 0:127);
sense[4] = P_SENSE5;
}
}
}
I reckon with a baked bean tin about 16ft in diameter and about 25,000 magnets you could dump your sequencer software.. and you'd be getting some good aerobic exercise to boot :o)
Here is the schematic (if you make one, note that hall effect switches need the magnet to be the right way round.. if it does not trigger, flip the magnet over)
And the code (SourceBoost C... NOTE: you'll need programmer hardware like PICKit2 to burn the program to the PIC chip)
// HALL SENSOR TO MIDI NOTES
// J.Hotchkiss Mar2010
#include <system.h>
#include <memory.h>
// PIC CONFIG
#pragma DATA _CONFIG, _MCLRE_OFF&_WDT_OFF&_INTRC_OSC_NOCLKOUT
#pragma CLOCK_FREQ 8000000
#define P_SENSE1 porta.5
#define P_SENSE2 portc.2
#define P_SENSE3 portc.1
#define P_SENSE4 portc.0
#define P_SENSE5 porta.2
typedef unsigned char byte;
// INITIALISE SERIAL PORT FOR MIDI
void init_usart()
{
pir1.1 = 1; //TXIF transmit enable
pie1.1 = 0; //TXIE no interrupts
baudctl.4 = 0; // synchronous bit polarity
baudctl.3 = 1; // enable 16 bit brg
baudctl.1 = 0; // wake up enable off
baudctl.0 = 0; // disable auto baud detect
txsta.6 = 0; // 8 bit transmission
txsta.5 = 1; // transmit enable
txsta.4 = 0; // async mode
txsta.2 = 0; // high baudrate BRGH
rcsta.7 = 1; // serial port enable
rcsta.6 = 0; // 8 bit operation
rcsta.4 = 0; // enable receiver
spbrgh = 0; // brg high byte
spbrg = 15; // brg low byte (31250)
}
////////////////////////////////////////////////////////////
// SEND A MIDI BYTE
void send(unsigned char c)
{
txreg = c;
while(!txsta.1);
}
////////////////////////////////////////////////////////////
// CONTINUOUS CONTROLLER MESSAGE
void sendController(byte channel, byte controller, byte value)
{
send(0xb0 | channel);
send(controller&0x7f);
send(value&0x7f);
}
////////////////////////////////////////////////////////////
// NOTE MESSAGE
void startNote(byte channel, byte note, byte value)
{
send(0x90 | channel);
send(note&0x7f);
send(value&0x7f);
}
void main()
{
// osc control / 8MHz / internal
osccon = 0b01110001;
// timer0... configure source and prescaler
option_reg = 0b10000011;
cmcon0 = 7;
porta=0;
wpua=0;
portc=0;
// configure io
trisa = 0b00100100;
trisc = 0b00001111;
ansel = 0b00000000;
// initialise MIDI comms
init_usart();
// Set up the MIDI notes for each sensor
byte note[5] = {60,62,64,65,66};
// byte note[5] = {36,37,38,39,40}; // For Reason REDRUM
byte sense[5] = {0};
for(;;)
{
if(P_SENSE1 != sense[0])
{
startNote(0, note[0], P_SENSE1? 0:127);
sense[0] = P_SENSE1;
}
if(P_SENSE2 != sense[1])
{
startNote(0, note[1], P_SENSE2? 0:127);
sense[1] = P_SENSE2;
}
if(P_SENSE3 != sense[2])
{
startNote(0, note[2], P_SENSE3? 0:127);
sense[2] = P_SENSE3;
}
if(P_SENSE4 != sense[3])
{
startNote(0, note[3], P_SENSE4? 0:127);
sense[3] = P_SENSE4;
}
if(P_SENSE5 != sense[4])
{
startNote(0, note[4], P_SENSE5? 0:127);
sense[4] = P_SENSE5;
}
}
}
Saturday, 6 March 2010
MIDI Guitar on Stripboard... Kind of
Somewhere between the Omnichord and the Stylophone lies this thing... simple but suprisingly effective... a PIC16F688 microcontroller, 2 shift registers IC's, 36 switches and a bunch of wire. The buttons select major/minor/maj7/min7/7/dim/aug chords based on any root note, and you "strum" across 3-4 octaves of notes from the chord by touching bits of exposed wire with a "stylus". The output is all MIDI (circuit makes no sound by itself) and Reason is being used here for sounds.
Note - If you are new to PIC stuff and want to make your own version of this project, remember you will need some way to program the PIC chip (its like a tiny computer and it comes without any software installed). The code is included below, but you'll need to compile it (using the free SourceBoost compiler) and "burn" it to the PIC... you can buy a programmer (e.g. PICkit2) or maybe borrow one. If there is enough demand I might be able to provide pre-programmed PIC16F688's for this, or my other PIC projects. Drop me a message if you'd be interested.
Schematic
The business end...
The mess on the back...
How it works (if you are interested)...
It's the tried and trusted principle of the keyboard matrix - the 74HC595 IC's are "shift registers" which are simply used to scan a single "on" bit across 16 lines, one at a time (all 16 are used for the stylus, the first 12 are used for the columns of the kepad). The program running on the PIC chip reads the voltage coming back from each row of the keypad and also from the stylus. Since the program knows which one of the 16 shift register outputs it has switched "on" at any moment in time it then knows which buttons are pressed / which "strings" the stylus is touching at any moment in time by which input lines (if any) it reads the voltage back on. The rest is down to the program code to convert this info into MIDI notes and send them to a synth. One other important things are the 10k "pull down" resistors on each of the 3 keyboard rows and the stylus line... they make sure that an unconnected line settles at 0V rather than reading spurious random values.
The source code
// STRUM CHORD CONTROLLER
// (c) 2010 J.Hotchkiss
// SOURCEBOOST C FOR PIC16F688
#include <system.h>
#include <memory.h>
// PIC CONFIG
#pragma DATA _CONFIG, _MCLRE_OFF&_WDT_OFF&_INTRC_OSC_NOCLKOUT
#pragma CLOCK_FREQ 8000000
// Define pins
#define P_CLK porta.2
#define P_DS portc.0
#define P_STYLUS portc.1
#define P_HEARTBEAT portc.2
#define P_KEYS1 portc.3
#define P_KEYS2 porta.4
#define P_KEYS3 porta.5
typedef unsigned char byte;
// Chord types
enum {
CHORD_NONE,
CHORD_MAJ,
CHORD_MIN,
CHORD_DOM7,
CHORD_MAJ7,
CHORD_MIN7,
CHORD_AUG,
CHORD_DIM
};
// special note value
#define NO_NOTE 0xff
//byte silent[1] = {NO_NOTE};
// Define the chord structures
byte maj[3] = {0,4,7};
byte min[3] = {0,3,7};
byte dom7[4] = {0,4,7,10};
byte maj7[4] = {0,4,7,11};
byte min7[4] = {0,3,7,10};
byte dim[3] = {0,3,6};
byte aug[3] = {0,3,8};
// Define the MIDI root notes mapped to each key
byte roots[16]={36,37,38,39,40,41,42,43,44,45,46,47,48,49,50,51};
// bit mapped register of which strings are currently connected
// to the stylus (notes triggered when stylus breaks contact
// with the strings)
unsigned long strings =0;
// Notes for each string
byte notes[16] = {0};
// current chord type
byte lastChordType = CHORD_NONE;
// current root note
byte lastRoot = NO_NOTE;
////////////////////////////////////////////////////////////
// INITIALISE SERIAL PORT FOR MIDI
void init_usart()
{
pir1.1 = 1; //TXIF transmit enable
pie1.1 = 0; //TXIE no interrupts
baudctl.4 = 0; // synchronous bit polarity
baudctl.3 = 1; // enable 16 bit brg
baudctl.1 = 0; // wake up enable off
baudctl.0 = 0; // disable auto baud detect
txsta.6 = 0; // 8 bit transmission
txsta.5 = 1; // transmit enable
txsta.4 = 0; // async mode
txsta.2 = 0; // high baudrate BRGH
rcsta.7 = 1; // serial port enable
rcsta.6 = 0; // 8 bit operation
rcsta.4 = 0; // enable receiver
spbrgh = 0; // brg high byte
spbrg = 15; // brg low byte (31250)
}
////////////////////////////////////////////////////////////
// SEND A MIDI BYTE
void send(unsigned char c)
{
txreg = c;
while(!txsta.1);
}
////////////////////////////////////////////////////////////
// CONTINUOUS CONTROLLER MESSAGE
void sendController(byte channel, byte controller, byte value)
{
P_HEARTBEAT = 1;
send(0xb0 | channel);
send(controller&0x7f);
send(value&0x7f);
P_HEARTBEAT = 0;
}
////////////////////////////////////////////////////////////
// NOTE MESSAGE
void startNote(byte channel, byte note, byte value)
{
P_HEARTBEAT = 1;
send(0x90 | channel);
send(note&0x7f);
send(value&0x7f);
P_HEARTBEAT = 0;
}
////////////////////////////////////////////////////////////
// CALCULATE NOTES FOR A CHORD SHAPE AND MAP THEM
// TO THE STRINGS
void changeToChord(int root, int which)
{
int i,j,len=0;
byte *struc = maj;
byte chord[16];
if(CHORD_NONE == which || NO_NOTE == root)
{
// stop playing
for(i=0;i<16;++i)
chord[i] = NO_NOTE;
}
else
{
// select the correct chord shape
switch(which)
{
case CHORD_MIN:
struc = min;
len = sizeof(min);
break;
case CHORD_DOM7:
struc = dom7;
len = sizeof(dom7);
break;
case CHORD_MAJ7:
struc = maj7;
len = sizeof(maj7);
break;
case CHORD_MIN7:
struc = min7;
len = sizeof(min7);
break;
case CHORD_AUG:
struc = aug;
len = sizeof(aug);
break;
case CHORD_DIM:
struc = dim;
len = sizeof(dim);
break;
case CHORD_MAJ:
default:
struc = maj;
len = sizeof(maj);
break;
break;
}
// fill the chord array with MIDI notes
int from = 0;
for(i=0;i<16;++i)
{
chord[i] = root+struc[from];
if(++from >= len)
{
root+=12;
from = 0;
}
}
}
// stop previous notes from playing if they are not a
// part of the new chord
for(i=0;i<16;++i)
{
if(notes[i] != NO_NOTE)
{
// check to see if it is part of the new chord
byte foundIt = 0;
for(j=0;j<16;++j)
{
if(chord[j] == notes[i])
{
foundIt = true;
break;
}
}
// if not, then make sure its not playing
if(!foundIt)
{
startNote(0, notes[i], 0);
}
}
}
// store the new chord
for(i=0;i<16;++i)
notes[i] = chord[i];
}
////////////////////////////////////////////////////////////
// POLL KEYBOARD MATRIX AND STRINGS
void pollIO()
{
// clock a single bit into the shift register
P_CLK = 0;
P_DS = 1;
P_CLK = 1;
P_DS = 0;
// get ready to scan
int root = NO_NOTE;
int chordType = CHORD_NONE;
unsigned long b = 1;
// scan for each string
for(int i=0;i<16;++i)
{
// clock pulse to shift the bit (note that
// the first bit does not appear until the
// second clock pulse, since we tied shift and store
// clock lines together)
P_CLK = 0;
P_CLK = 1;
// did we get a signal back on any of the
// keyboard scan rows?
if(P_KEYS1 || P_KEYS2 || P_KEYS3)
{
// have we decided on the root note yet?
if(NO_NOTE == root)
{
// look up the root note
root = roots[15-i];
// get the correct chord shape
switch(
(P_KEYS1? 0b100:0)|
(P_KEYS2? 0b010:0)|
(P_KEYS3? 0b001:0))
{
case 0b111:
chordType = CHORD_AUG;
break;
case 0b110:
chordType = CHORD_DIM;
break;
case 0b100:
chordType = CHORD_MAJ;
break;
case 0b101:
chordType = CHORD_MAJ7;
break;
case 0b010:
chordType = CHORD_MIN;
break;
case 0b011:
chordType = CHORD_MIN7;
break;
case 0b001:
chordType = CHORD_DOM7;
break;
default:
chordType = CHORD_NONE;
break;
}
}
}
// now check whether we got a signal
// back from the stylus (meaning that
// it's touching this string)
byte whichString = 15-i;
if(P_STYLUS)
{
// string is being touched... was
// it being touched before?
if(!(strings & b))
{
// stop the note playing (if
// it is currently playing). When
// stylus is touching a string it
// is "damped" and does not play
// till contact is broken
if(notes[whichString] != NO_NOTE)
{
startNote(0, notes[whichString], 0);
}
// remember this string is being touched
strings |= b;
}
}
// stylus not touching string now, but was it
// touching the string before?
else if(strings & b)
{
// start a note playing
if(notes[whichString] != NO_NOTE)
{
startNote(0, notes[whichString], 127);
}
// remember string is not being touched
strings &= ~b;
}
// shift the masking bit
b<<=1;
}
// has the chord changed?
if(chordType != lastChordType || root != lastRoot)
{
// change to the new chord
lastChordType = chordType;
lastRoot = root;
changeToChord(root, chordType);
}
}
void main()
{
// osc control / 8MHz / internal
osccon = 0b01110001;
// timer0... configure source and prescaler
option_reg = 0b10000011;
cmcon0 = 7;
// configure io
trisa = 0b00110000;
trisc = 0b00001010;
ansel = 0b00000000;
// initialise MIDI comms
init_usart();
// initialise the notes array
memset(notes,NO_NOTE,sizeof(notes));
for(;;)
{
// and now just repeatedly
// check for input
pollIO();
}
}
Note - If you are new to PIC stuff and want to make your own version of this project, remember you will need some way to program the PIC chip (its like a tiny computer and it comes without any software installed). The code is included below, but you'll need to compile it (using the free SourceBoost compiler) and "burn" it to the PIC... you can buy a programmer (e.g. PICkit2) or maybe borrow one. If there is enough demand I might be able to provide pre-programmed PIC16F688's for this, or my other PIC projects. Drop me a message if you'd be interested.
Schematic
The business end...
The mess on the back...
How it works (if you are interested)...
It's the tried and trusted principle of the keyboard matrix - the 74HC595 IC's are "shift registers" which are simply used to scan a single "on" bit across 16 lines, one at a time (all 16 are used for the stylus, the first 12 are used for the columns of the kepad). The program running on the PIC chip reads the voltage coming back from each row of the keypad and also from the stylus. Since the program knows which one of the 16 shift register outputs it has switched "on" at any moment in time it then knows which buttons are pressed / which "strings" the stylus is touching at any moment in time by which input lines (if any) it reads the voltage back on. The rest is down to the program code to convert this info into MIDI notes and send them to a synth. One other important things are the 10k "pull down" resistors on each of the 3 keyboard rows and the stylus line... they make sure that an unconnected line settles at 0V rather than reading spurious random values.
The source code
// STRUM CHORD CONTROLLER
// (c) 2010 J.Hotchkiss
// SOURCEBOOST C FOR PIC16F688
#include <system.h>
#include <memory.h>
// PIC CONFIG
#pragma DATA _CONFIG, _MCLRE_OFF&_WDT_OFF&_INTRC_OSC_NOCLKOUT
#pragma CLOCK_FREQ 8000000
// Define pins
#define P_CLK porta.2
#define P_DS portc.0
#define P_STYLUS portc.1
#define P_HEARTBEAT portc.2
#define P_KEYS1 portc.3
#define P_KEYS2 porta.4
#define P_KEYS3 porta.5
typedef unsigned char byte;
// Chord types
enum {
CHORD_NONE,
CHORD_MAJ,
CHORD_MIN,
CHORD_DOM7,
CHORD_MAJ7,
CHORD_MIN7,
CHORD_AUG,
CHORD_DIM
};
// special note value
#define NO_NOTE 0xff
//byte silent[1] = {NO_NOTE};
// Define the chord structures
byte maj[3] = {0,4,7};
byte min[3] = {0,3,7};
byte dom7[4] = {0,4,7,10};
byte maj7[4] = {0,4,7,11};
byte min7[4] = {0,3,7,10};
byte dim[3] = {0,3,6};
byte aug[3] = {0,3,8};
// Define the MIDI root notes mapped to each key
byte roots[16]={36,37,38,39,40,41,42,43,44,45,46,47,48,49,50,51};
// bit mapped register of which strings are currently connected
// to the stylus (notes triggered when stylus breaks contact
// with the strings)
unsigned long strings =0;
// Notes for each string
byte notes[16] = {0};
// current chord type
byte lastChordType = CHORD_NONE;
// current root note
byte lastRoot = NO_NOTE;
////////////////////////////////////////////////////////////
// INITIALISE SERIAL PORT FOR MIDI
void init_usart()
{
pir1.1 = 1; //TXIF transmit enable
pie1.1 = 0; //TXIE no interrupts
baudctl.4 = 0; // synchronous bit polarity
baudctl.3 = 1; // enable 16 bit brg
baudctl.1 = 0; // wake up enable off
baudctl.0 = 0; // disable auto baud detect
txsta.6 = 0; // 8 bit transmission
txsta.5 = 1; // transmit enable
txsta.4 = 0; // async mode
txsta.2 = 0; // high baudrate BRGH
rcsta.7 = 1; // serial port enable
rcsta.6 = 0; // 8 bit operation
rcsta.4 = 0; // enable receiver
spbrgh = 0; // brg high byte
spbrg = 15; // brg low byte (31250)
}
////////////////////////////////////////////////////////////
// SEND A MIDI BYTE
void send(unsigned char c)
{
txreg = c;
while(!txsta.1);
}
////////////////////////////////////////////////////////////
// CONTINUOUS CONTROLLER MESSAGE
void sendController(byte channel, byte controller, byte value)
{
P_HEARTBEAT = 1;
send(0xb0 | channel);
send(controller&0x7f);
send(value&0x7f);
P_HEARTBEAT = 0;
}
////////////////////////////////////////////////////////////
// NOTE MESSAGE
void startNote(byte channel, byte note, byte value)
{
P_HEARTBEAT = 1;
send(0x90 | channel);
send(note&0x7f);
send(value&0x7f);
P_HEARTBEAT = 0;
}
////////////////////////////////////////////////////////////
// CALCULATE NOTES FOR A CHORD SHAPE AND MAP THEM
// TO THE STRINGS
void changeToChord(int root, int which)
{
int i,j,len=0;
byte *struc = maj;
byte chord[16];
if(CHORD_NONE == which || NO_NOTE == root)
{
// stop playing
for(i=0;i<16;++i)
chord[i] = NO_NOTE;
}
else
{
// select the correct chord shape
switch(which)
{
case CHORD_MIN:
struc = min;
len = sizeof(min);
break;
case CHORD_DOM7:
struc = dom7;
len = sizeof(dom7);
break;
case CHORD_MAJ7:
struc = maj7;
len = sizeof(maj7);
break;
case CHORD_MIN7:
struc = min7;
len = sizeof(min7);
break;
case CHORD_AUG:
struc = aug;
len = sizeof(aug);
break;
case CHORD_DIM:
struc = dim;
len = sizeof(dim);
break;
case CHORD_MAJ:
default:
struc = maj;
len = sizeof(maj);
break;
break;
}
// fill the chord array with MIDI notes
int from = 0;
for(i=0;i<16;++i)
{
chord[i] = root+struc[from];
if(++from >= len)
{
root+=12;
from = 0;
}
}
}
// stop previous notes from playing if they are not a
// part of the new chord
for(i=0;i<16;++i)
{
if(notes[i] != NO_NOTE)
{
// check to see if it is part of the new chord
byte foundIt = 0;
for(j=0;j<16;++j)
{
if(chord[j] == notes[i])
{
foundIt = true;
break;
}
}
// if not, then make sure its not playing
if(!foundIt)
{
startNote(0, notes[i], 0);
}
}
}
// store the new chord
for(i=0;i<16;++i)
notes[i] = chord[i];
}
////////////////////////////////////////////////////////////
// POLL KEYBOARD MATRIX AND STRINGS
void pollIO()
{
// clock a single bit into the shift register
P_CLK = 0;
P_DS = 1;
P_CLK = 1;
P_DS = 0;
// get ready to scan
int root = NO_NOTE;
int chordType = CHORD_NONE;
unsigned long b = 1;
// scan for each string
for(int i=0;i<16;++i)
{
// clock pulse to shift the bit (note that
// the first bit does not appear until the
// second clock pulse, since we tied shift and store
// clock lines together)
P_CLK = 0;
P_CLK = 1;
// did we get a signal back on any of the
// keyboard scan rows?
if(P_KEYS1 || P_KEYS2 || P_KEYS3)
{
// have we decided on the root note yet?
if(NO_NOTE == root)
{
// look up the root note
root = roots[15-i];
// get the correct chord shape
switch(
(P_KEYS1? 0b100:0)|
(P_KEYS2? 0b010:0)|
(P_KEYS3? 0b001:0))
{
case 0b111:
chordType = CHORD_AUG;
break;
case 0b110:
chordType = CHORD_DIM;
break;
case 0b100:
chordType = CHORD_MAJ;
break;
case 0b101:
chordType = CHORD_MAJ7;
break;
case 0b010:
chordType = CHORD_MIN;
break;
case 0b011:
chordType = CHORD_MIN7;
break;
case 0b001:
chordType = CHORD_DOM7;
break;
default:
chordType = CHORD_NONE;
break;
}
}
}
// now check whether we got a signal
// back from the stylus (meaning that
// it's touching this string)
byte whichString = 15-i;
if(P_STYLUS)
{
// string is being touched... was
// it being touched before?
if(!(strings & b))
{
// stop the note playing (if
// it is currently playing). When
// stylus is touching a string it
// is "damped" and does not play
// till contact is broken
if(notes[whichString] != NO_NOTE)
{
startNote(0, notes[whichString], 0);
}
// remember this string is being touched
strings |= b;
}
}
// stylus not touching string now, but was it
// touching the string before?
else if(strings & b)
{
// start a note playing
if(notes[whichString] != NO_NOTE)
{
startNote(0, notes[whichString], 127);
}
// remember string is not being touched
strings &= ~b;
}
// shift the masking bit
b<<=1;
}
// has the chord changed?
if(chordType != lastChordType || root != lastRoot)
{
// change to the new chord
lastChordType = chordType;
lastRoot = root;
changeToChord(root, chordType);
}
}
void main()
{
// osc control / 8MHz / internal
osccon = 0b01110001;
// timer0... configure source and prescaler
option_reg = 0b10000011;
cmcon0 = 7;
// configure io
trisa = 0b00110000;
trisc = 0b00001010;
ansel = 0b00000000;
// initialise MIDI comms
init_usart();
// initialise the notes array
memset(notes,NO_NOTE,sizeof(notes));
for(;;)
{
// and now just repeatedly
// check for input
pollIO();
}
}
Sunday, 28 February 2010
When Lava met Mopho
I got a new toy! an Mopho analog synth from Dave Smith Instruments. First use.. a companion to my MIDI lavalamp to free it up from PC based soft synths. Since my original MIDI lavalamp project was based on a standard Arduino, I decided this time to make a quick little module for it using a PIC16F688 (my current weapon of choice)
Here is the circuit on stripboard
...the mess on the back...
...and the schematic...
... the lamp is wired up as described on this post
... and the PIC source code is included below (SourceBoost compiler)
#include <system.h>
#include <memory.h>
#define ANA_0 0b00000000
#define ANA_1 0b00000100
#define ANA_2 0b00001000
#define ANA_3 0b00001100
#define ANA_4 0b00010000
#define ANA_5 0b00010100
#define ANA_6 0b00011000
#define ANA_7 0b00011100
#define ADC_MAX 6
#define P_HEARTBEAT porta.5
#pragma DATA _CONFIG, _MCLRE_OFF&_WDT_OFF&_INTRC_OSC_NOCLKOUT
#pragma CLOCK_FREQ 8000000
#define ADC_AQUISITION_DELAY 10
typedef unsigned char byte;
enum {
ADC_CONNECT,
ADC_ACQUIRE,
ADC_CONVERT
};
void init_usart()
{
pir1.1 = 1; //TXIF transmit enable
pie1.1 = 0; //TXIE no interrupts
baudctl.4 = 0; // synchronous bit polarity
baudctl.3 = 1; // enable 16 bit brg
baudctl.1 = 0; // wake up enable off
baudctl.0 = 0; // disable auto baud detect
txsta.6 = 0; // 8 bit transmission
txsta.5 = 1; // transmit enable
txsta.4 = 0; // async mode
txsta.2 = 0; // high baudrate BRGH
rcsta.7 = 1; // serial port enable
rcsta.6 = 0; // 8 bit operation
rcsta.4 = 0; // enable receiver
spbrgh = 0; // brg high byte
spbrg = 15; // brg low byte (31250)
}
void send(unsigned char c)
{
txreg = c;
while(!txsta.1);
}
void sendController(byte channel, byte controller, byte value)
{
P_HEARTBEAT = 1;
send(0xb0 | channel);
send(controller&0x7f);
send(value&0x7f);
P_HEARTBEAT = 0;
}
byte adcInput[ADC_MAX] = {ANA_2, ANA_3, ANA_4, ANA_5, ANA_6, ANA_7};
byte adcInitComplete = 0;
int adcResult[ADC_MAX] = {-1,-1,-1,-1,-1,-1};
int adcIndex = 0;
int adcState = ADC_CONNECT;
////////////////////////////////////////////////////////////////
//
// doADC
//
// State machine for running the ADC and updating the adcResult
// array with the result from each analog input
//
void doADC()
{
switch(adcState)
{
// Connect ADC to the correct analog input
case ADC_CONNECT:
adcon0=0b10000001 | adcInput[adcIndex];
tmr0 = 0;
adcState = ADC_ACQUIRE;
// fall through
// Waiting for a delay while the ADC input settles
case ADC_ACQUIRE:
if(tmr0 > ADC_AQUISITION_DELAY)
{
// Start the conversion
adcon0.1=1;
adcState = ADC_CONVERT;
}
break;
// Waiting for the conversion to complete
case ADC_CONVERT:
if(!adcon0.1)
{
// store the result
adcResult[adcIndex] = (((int)adresh)<<8)|adresl;
// and prepare for the next ADC
if(++adcIndex>=ADC_MAX)
{
adcIndex = 0;
adcInitComplete = 1;
}
adcState = ADC_CONNECT;
}
break;
}
}
#define BUFLEN 8
typedef struct
{
char midiChannel;
char midiController;
int minADC;
int maxADC;
char currentValue;
char history[BUFLEN];
} CONTROLLER;
CONTROLLER controllers[ADC_MAX] = {0};
void initInput(int which, byte channel, byte controller)
{
controllers[which].midiChannel = channel;
controllers[which].midiController = controller;
controllers[which].minADC = -1;
controllers[which].maxADC = -1;
controllers[which].currentValue = -1;
}
void checkInput(int which)
{
// pointer to the controllers
CONTROLLER *p = &controllers[which];
// read the raw analog value 0-1023
int adc = adcResult[which];
// remember highest and lowest values
if((p->minADC == -1) || (p->minADC > adc))
p->minADC = adc;
if((p->maxADC == -1) || (p->maxADC < adc))
p->maxADC = adc;
// get the range of known readings
int range = p->maxADC - p->minADC;
if(range < 1)
range = 1;
// scale the current value into the range
// NB no floating point support...
int newValue = (127*(adc - p->minADC))/range;
// add the value into the history buffer
long smoothed = 0;
for(int j=0; j<BUFLEN-1;++j)
{
p->history[j] = p->history[j+1];
smoothed += p->history[j];
}
p->history[BUFLEN-1] = newValue;
smoothed += newValue;
smoothed /= BUFLEN;
// has the value changed?
if(smoothed != p->currentValue)
{
sendController(p->midiChannel, p->midiController, smoothed);
p->currentValue= smoothed;
}
}
void main()
{
int i;
// osc control / 8MHz / internal
osccon = 0b01110001;
// timer0... configure source and prescaler
option_reg = 0b10000011;
cmcon0 = 7;
// configure io
trisa = 0b00001010;
trisc = 0b00001111;
ansel = 0b11111100;
// turn on the ADC
adcon1=0b00100000; //fOSC/32
adcon0=0b10000001; // Right justify / Vdd / AD on
// initialise MIDI comms
init_usart();
// Initialise the controllers
initInput(0, 0, 1);
initInput(1, 0, 2);
initInput(2, 0, 4);
initInput(3, 0, 7);
initInput(4, 0, 11);
initInput(5, 0, 74);
adcInitComplete = 0;
for(;;)
{
doADC();
if(adcInitComplete)
{
for(i=0;i<ADC_MAX;++i)
checkInput(i);
adcInitComplete = 0;
delay_ms(20);
}
}
}
Here is the circuit on stripboard
...the mess on the back...
...and the schematic...
... the lamp is wired up as described on this post
... and the PIC source code is included below (SourceBoost compiler)
#include <system.h>
#include <memory.h>
#define ANA_0 0b00000000
#define ANA_1 0b00000100
#define ANA_2 0b00001000
#define ANA_3 0b00001100
#define ANA_4 0b00010000
#define ANA_5 0b00010100
#define ANA_6 0b00011000
#define ANA_7 0b00011100
#define ADC_MAX 6
#define P_HEARTBEAT porta.5
#pragma DATA _CONFIG, _MCLRE_OFF&_WDT_OFF&_INTRC_OSC_NOCLKOUT
#pragma CLOCK_FREQ 8000000
#define ADC_AQUISITION_DELAY 10
typedef unsigned char byte;
enum {
ADC_CONNECT,
ADC_ACQUIRE,
ADC_CONVERT
};
void init_usart()
{
pir1.1 = 1; //TXIF transmit enable
pie1.1 = 0; //TXIE no interrupts
baudctl.4 = 0; // synchronous bit polarity
baudctl.3 = 1; // enable 16 bit brg
baudctl.1 = 0; // wake up enable off
baudctl.0 = 0; // disable auto baud detect
txsta.6 = 0; // 8 bit transmission
txsta.5 = 1; // transmit enable
txsta.4 = 0; // async mode
txsta.2 = 0; // high baudrate BRGH
rcsta.7 = 1; // serial port enable
rcsta.6 = 0; // 8 bit operation
rcsta.4 = 0; // enable receiver
spbrgh = 0; // brg high byte
spbrg = 15; // brg low byte (31250)
}
void send(unsigned char c)
{
txreg = c;
while(!txsta.1);
}
void sendController(byte channel, byte controller, byte value)
{
P_HEARTBEAT = 1;
send(0xb0 | channel);
send(controller&0x7f);
send(value&0x7f);
P_HEARTBEAT = 0;
}
byte adcInput[ADC_MAX] = {ANA_2, ANA_3, ANA_4, ANA_5, ANA_6, ANA_7};
byte adcInitComplete = 0;
int adcResult[ADC_MAX] = {-1,-1,-1,-1,-1,-1};
int adcIndex = 0;
int adcState = ADC_CONNECT;
////////////////////////////////////////////////////////////////
//
// doADC
//
// State machine for running the ADC and updating the adcResult
// array with the result from each analog input
//
void doADC()
{
switch(adcState)
{
// Connect ADC to the correct analog input
case ADC_CONNECT:
adcon0=0b10000001 | adcInput[adcIndex];
tmr0 = 0;
adcState = ADC_ACQUIRE;
// fall through
// Waiting for a delay while the ADC input settles
case ADC_ACQUIRE:
if(tmr0 > ADC_AQUISITION_DELAY)
{
// Start the conversion
adcon0.1=1;
adcState = ADC_CONVERT;
}
break;
// Waiting for the conversion to complete
case ADC_CONVERT:
if(!adcon0.1)
{
// store the result
adcResult[adcIndex] = (((int)adresh)<<8)|adresl;
// and prepare for the next ADC
if(++adcIndex>=ADC_MAX)
{
adcIndex = 0;
adcInitComplete = 1;
}
adcState = ADC_CONNECT;
}
break;
}
}
#define BUFLEN 8
typedef struct
{
char midiChannel;
char midiController;
int minADC;
int maxADC;
char currentValue;
char history[BUFLEN];
} CONTROLLER;
CONTROLLER controllers[ADC_MAX] = {0};
void initInput(int which, byte channel, byte controller)
{
controllers[which].midiChannel = channel;
controllers[which].midiController = controller;
controllers[which].minADC = -1;
controllers[which].maxADC = -1;
controllers[which].currentValue = -1;
}
void checkInput(int which)
{
// pointer to the controllers
CONTROLLER *p = &controllers[which];
// read the raw analog value 0-1023
int adc = adcResult[which];
// remember highest and lowest values
if((p->minADC == -1) || (p->minADC > adc))
p->minADC = adc;
if((p->maxADC == -1) || (p->maxADC < adc))
p->maxADC = adc;
// get the range of known readings
int range = p->maxADC - p->minADC;
if(range < 1)
range = 1;
// scale the current value into the range
// NB no floating point support...
int newValue = (127*(adc - p->minADC))/range;
// add the value into the history buffer
long smoothed = 0;
for(int j=0; j<BUFLEN-1;++j)
{
p->history[j] = p->history[j+1];
smoothed += p->history[j];
}
p->history[BUFLEN-1] = newValue;
smoothed += newValue;
smoothed /= BUFLEN;
// has the value changed?
if(smoothed != p->currentValue)
{
sendController(p->midiChannel, p->midiController, smoothed);
p->currentValue= smoothed;
}
}
void main()
{
int i;
// osc control / 8MHz / internal
osccon = 0b01110001;
// timer0... configure source and prescaler
option_reg = 0b10000011;
cmcon0 = 7;
// configure io
trisa = 0b00001010;
trisc = 0b00001111;
ansel = 0b11111100;
// turn on the ADC
adcon1=0b00100000; //fOSC/32
adcon0=0b10000001; // Right justify / Vdd / AD on
// initialise MIDI comms
init_usart();
// Initialise the controllers
initInput(0, 0, 1);
initInput(1, 0, 2);
initInput(2, 0, 4);
initInput(3, 0, 7);
initInput(4, 0, 11);
initInput(5, 0, 74);
adcInitComplete = 0;
for(;;)
{
doADC();
if(adcInitComplete)
{
for(i=0;i<ADC_MAX;++i)
checkInput(i);
adcInitComplete = 0;
delay_ms(20);
}
}
}
Subscribe to:
Posts (Atom)
